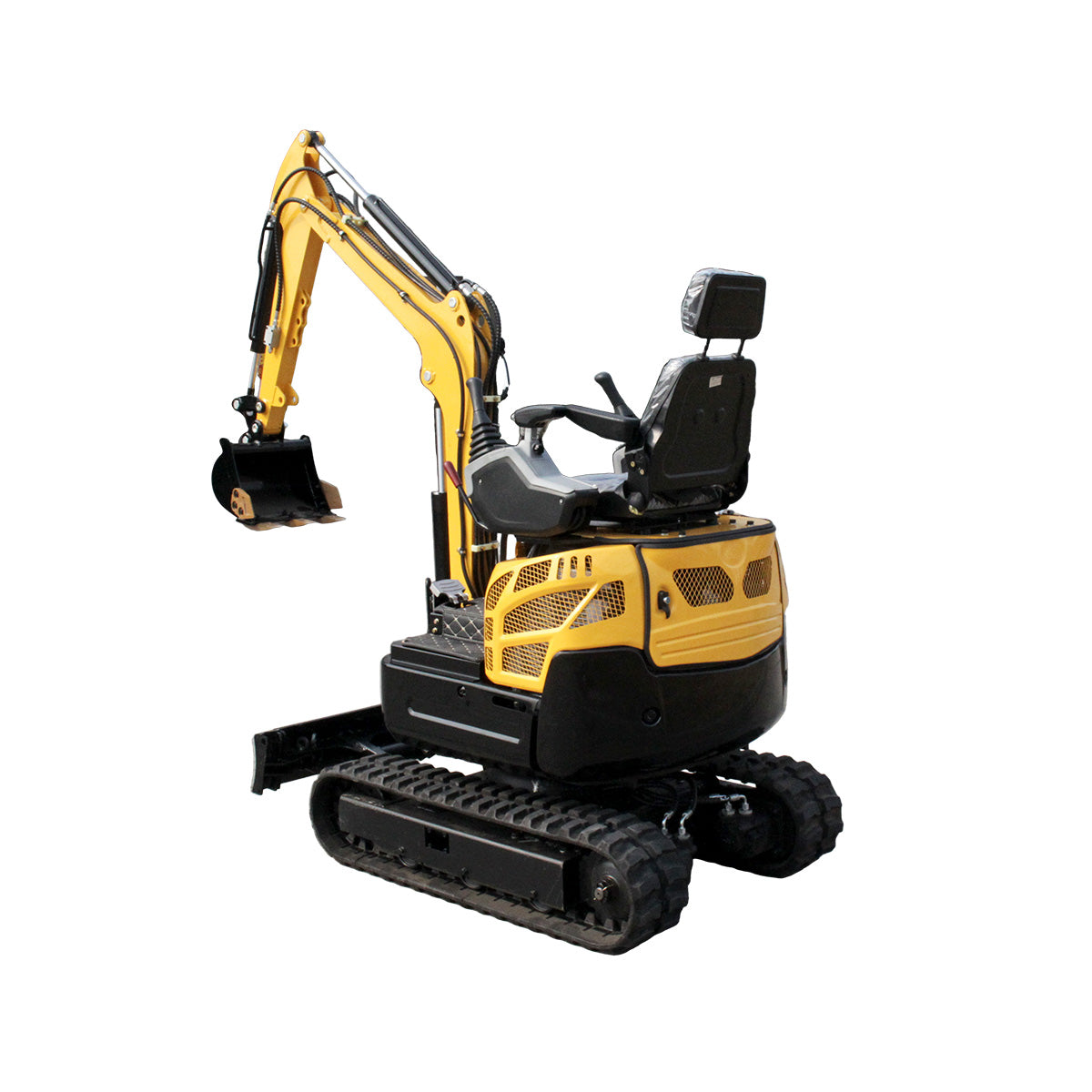

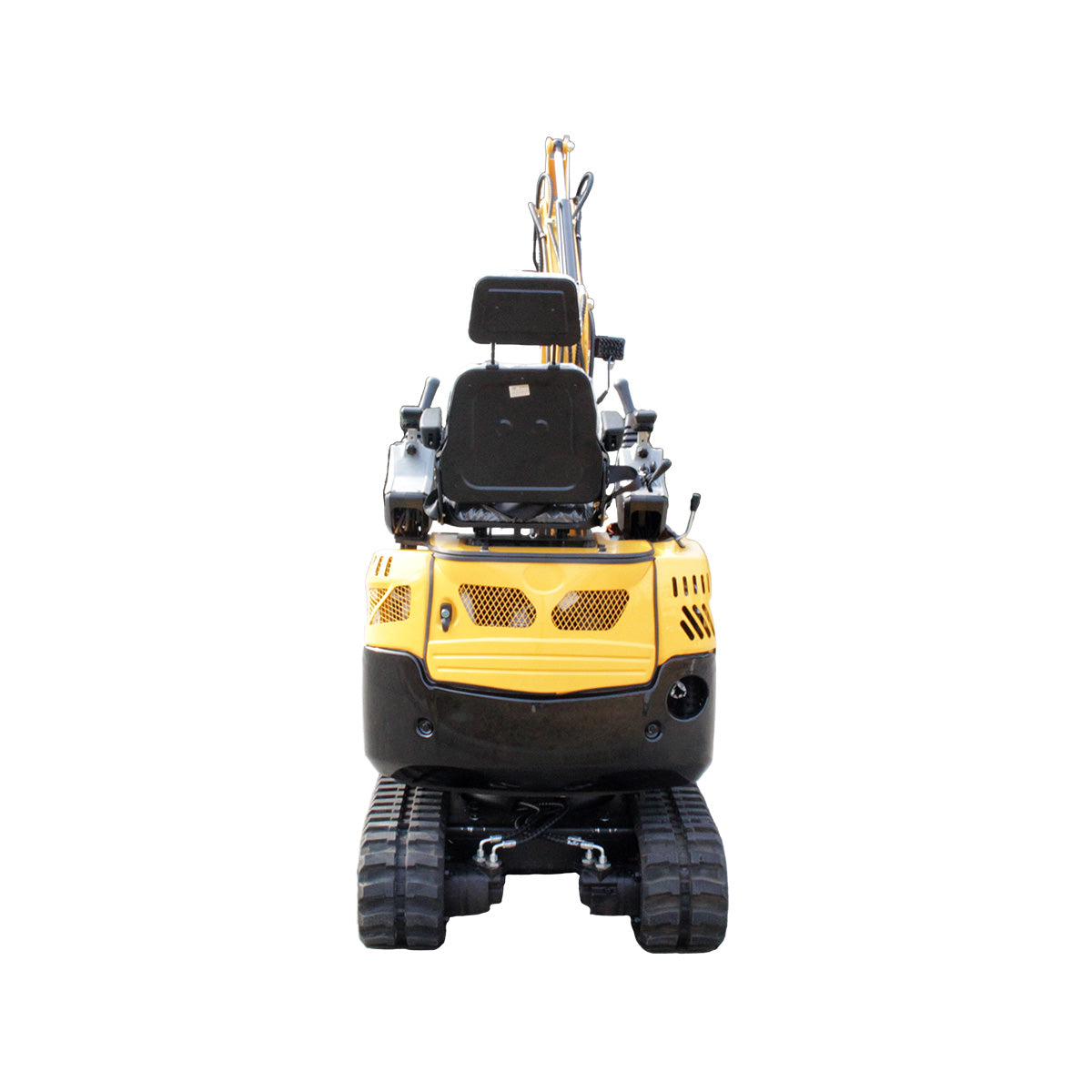

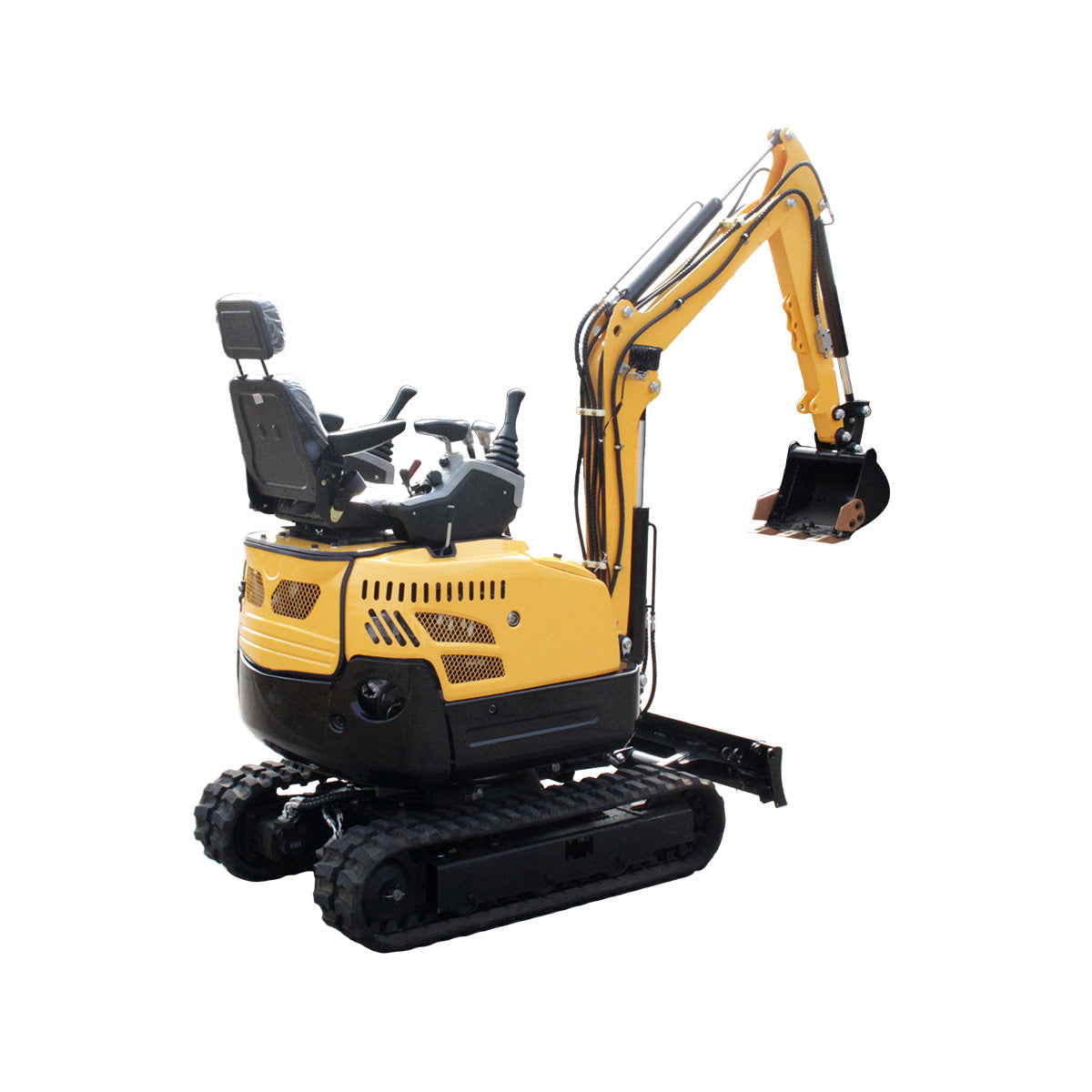

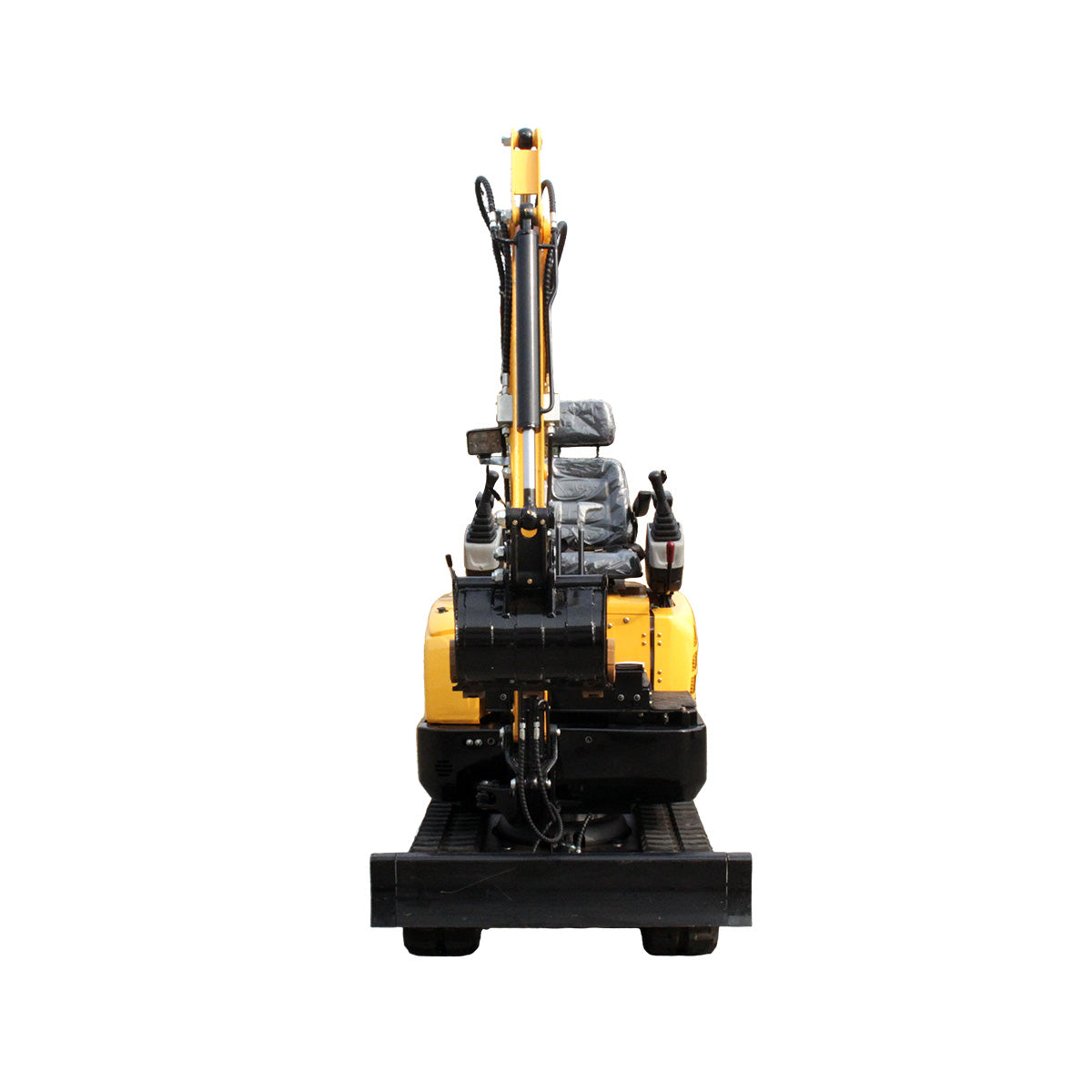

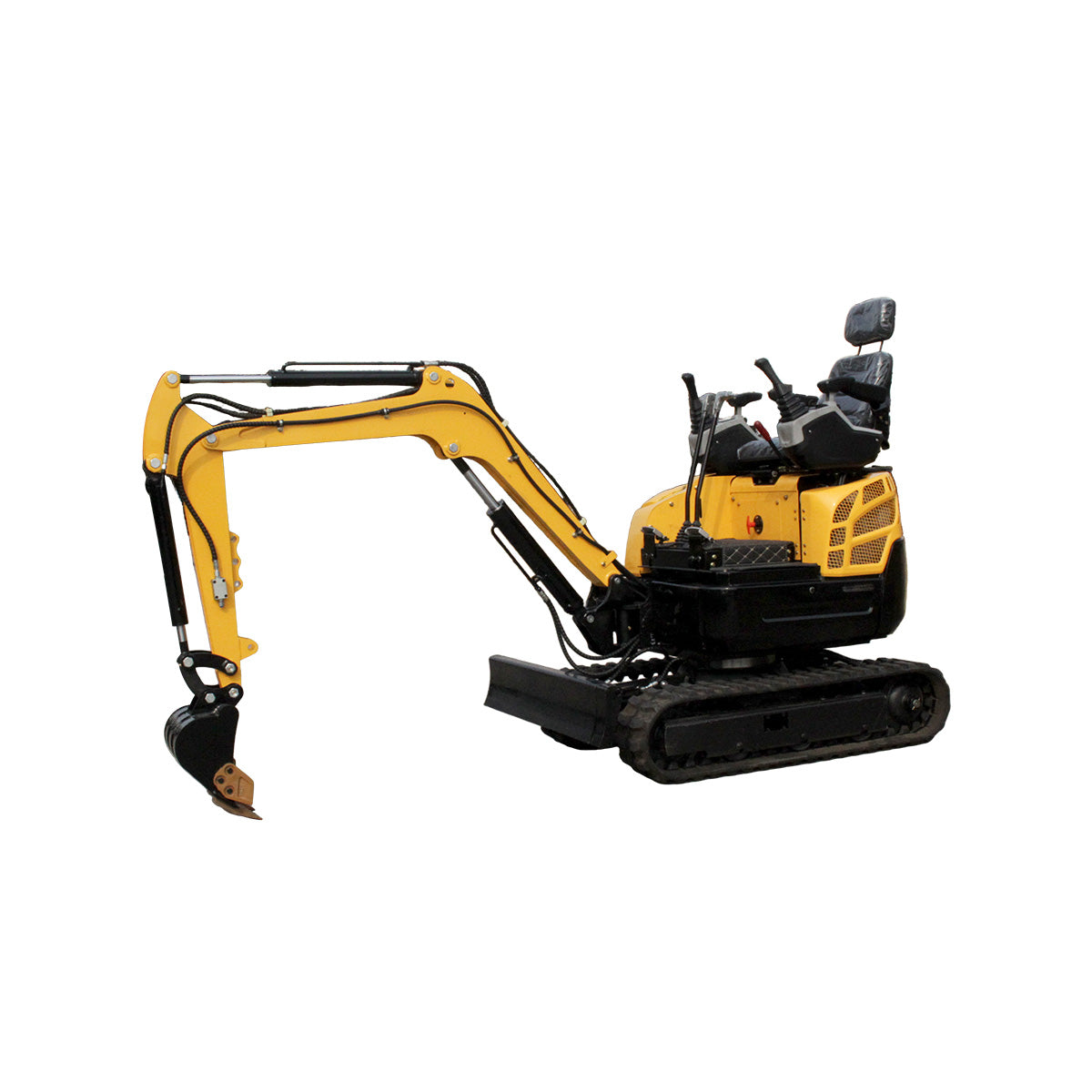

1.65 Ton KV18 Plus Mini Excavator with Kubota D722 Diesel Engine
$13,172,993.00
Description
| Specification | Dimensions (mm) | ||
|---|---|---|---|
| Engine Model |

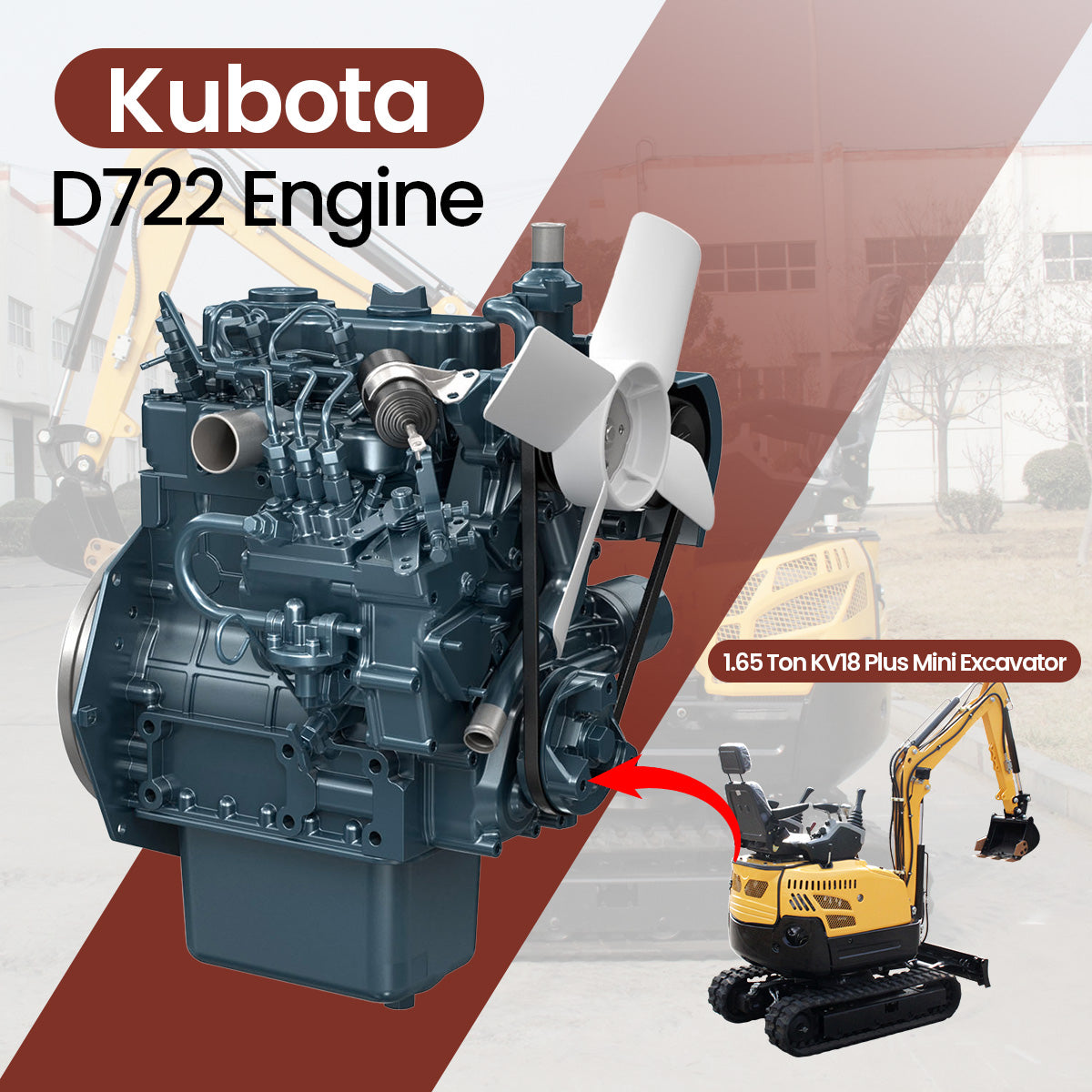

KUBOTA D722
|
Overall length | 2200 |
| Type |
3-cylinder, water-cooled, 4-stroke diesel engine
|
Ground length (transportation) | 2200 |
| Displacement (L) | 0.719 |
Overall height (to top of boom)
|
1880 |
| Rated Power (kw/rpm) |
10.3/3600
|
Overall width | 1100 |
|
Hydraulic Type
|
Made in Japan
|
Minimum ground clearance
|
80 |
|
Machine weight (kg)
|
1500 |
Counterweight ground clearance
|
1160 |
| Arm digging force(kN) |
8.5 – 9.5
|
Whole Size
|
2200 * 1100 * 2200
|
| Bucket digging force(kN) | 15 | Tail swing radius | 1100 |
| Travel speed (km/h) |
Low speed: 2.8 – 3.0
High speed: 4.5 – 5.0
|
Wheelbase | 420 |
| Traction force (kN) |
16 – 18
|
Standard track shoe width | 150 |
| Gradability ° |
20°
|
Chassis telescopic adjustment
|
950-1200
|
| Max. rotation speed (r/min) |
2200 – 2400
|
RS Boom right swing | 60° |
| Brake type | Mechanical brake | LS Boom left swing | 60° |
| Bucket capacity (m³) | 0.03 |
Max. digging height
|
2700 |
|
Fuel tank capacity (L)
|
0.035
|
Max. dumping height
|
1900 |
|
Hydraulic flow (L/min)
|
40
|
Max. digging depth
|
1910 |
|
Hydraulic tank capacity (L)
|
12
|
Max. digging radius on ground
|
3280 |
|
Workingpressure (Mpa)
|
16
|
Min. swing radius of working device
|
1636 |
