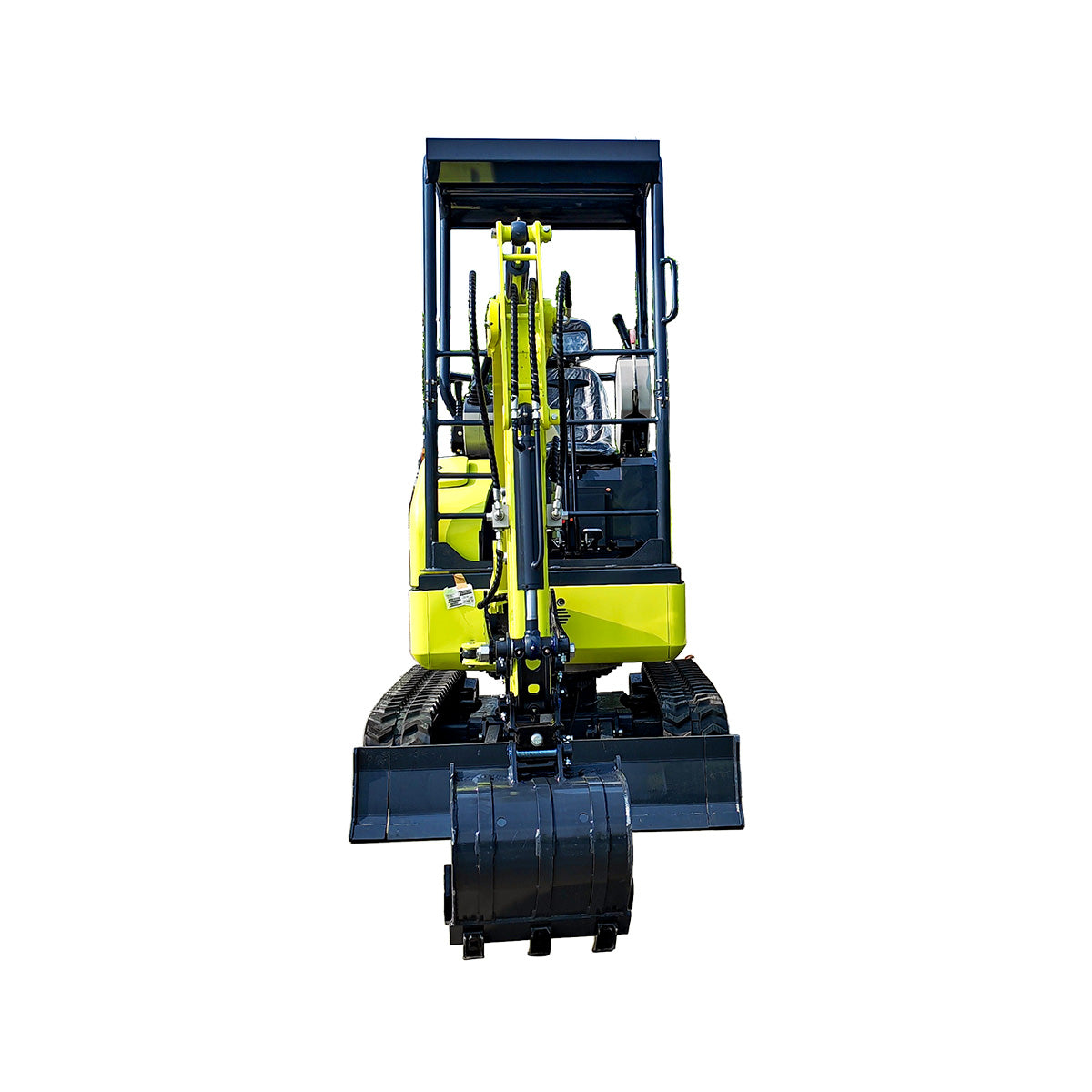

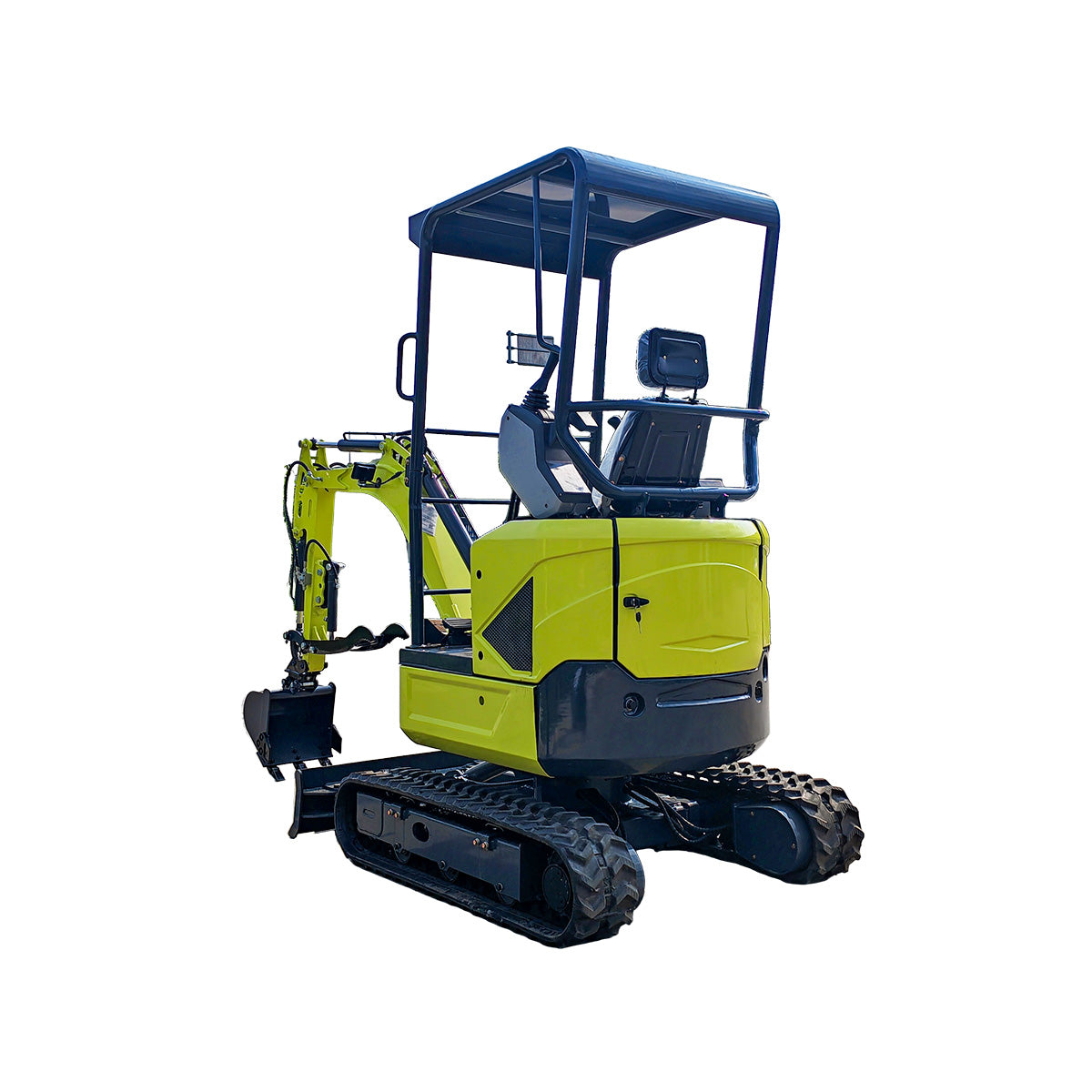

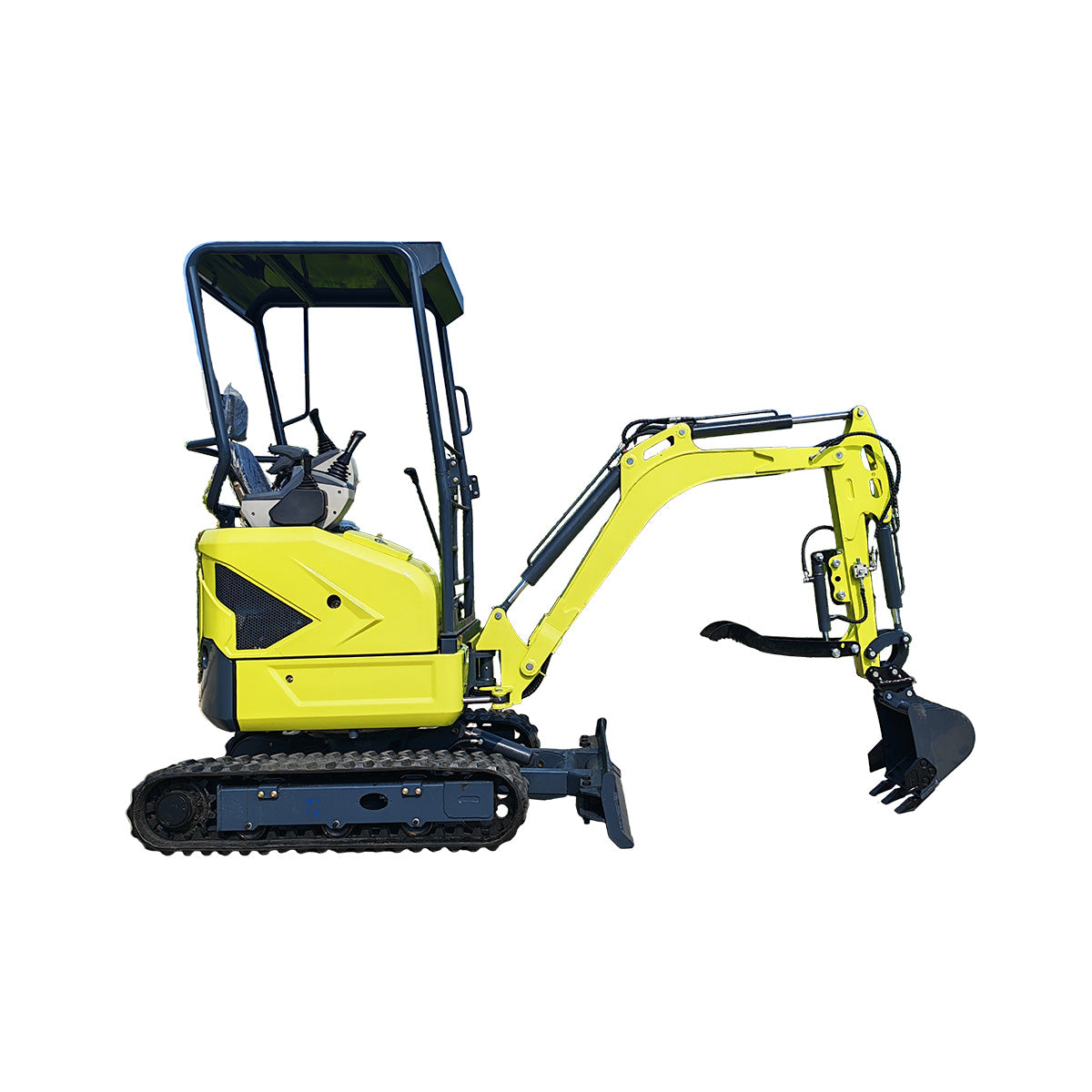

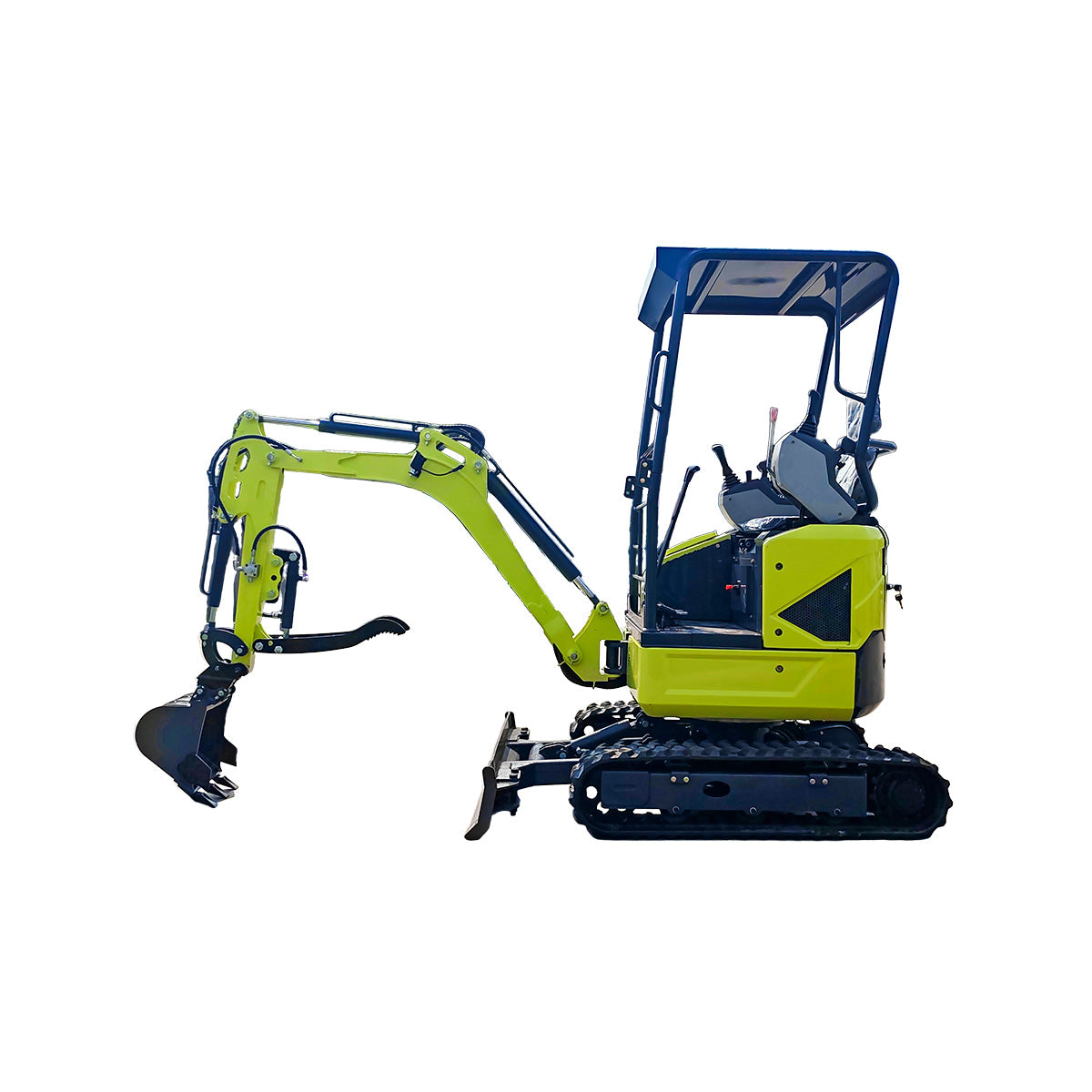

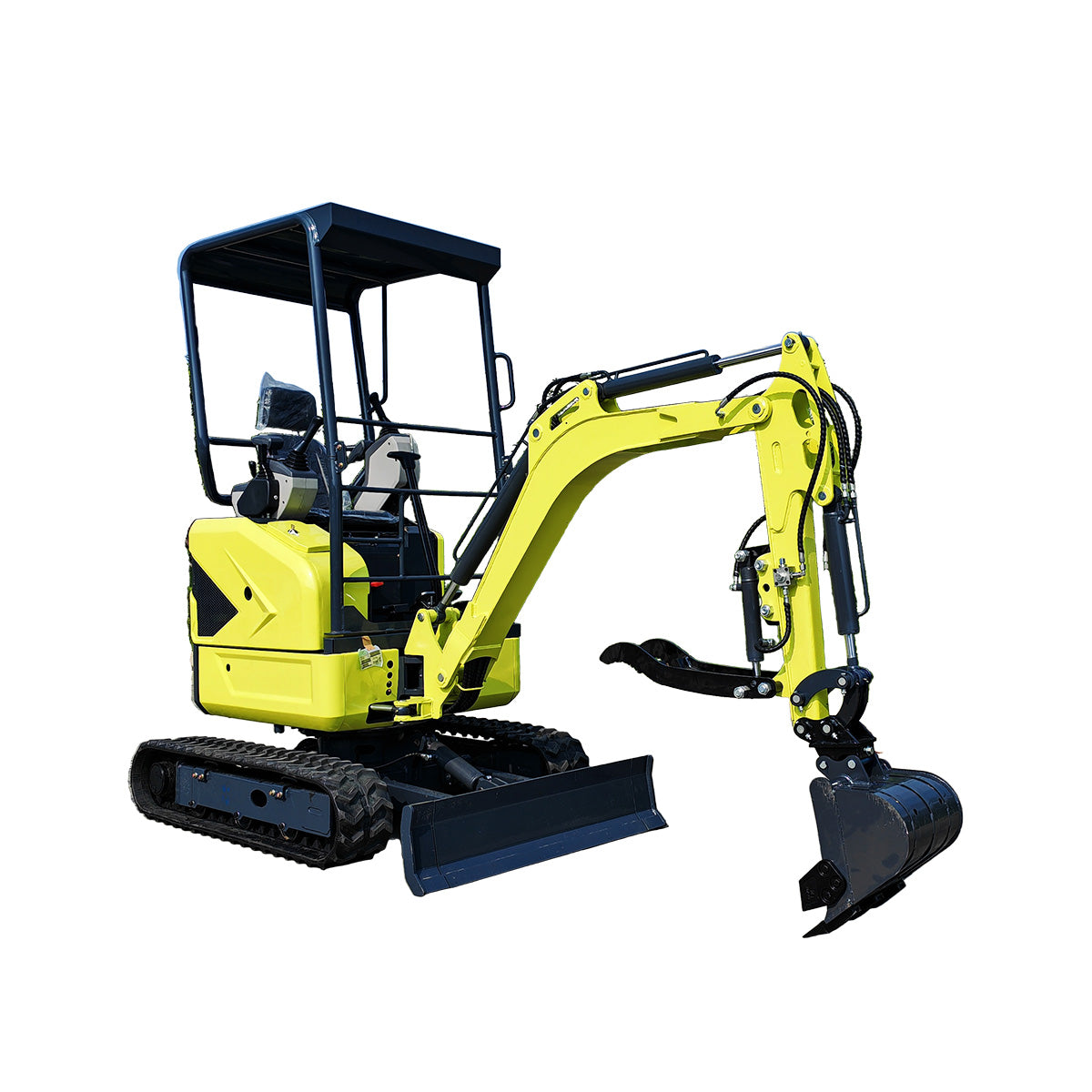

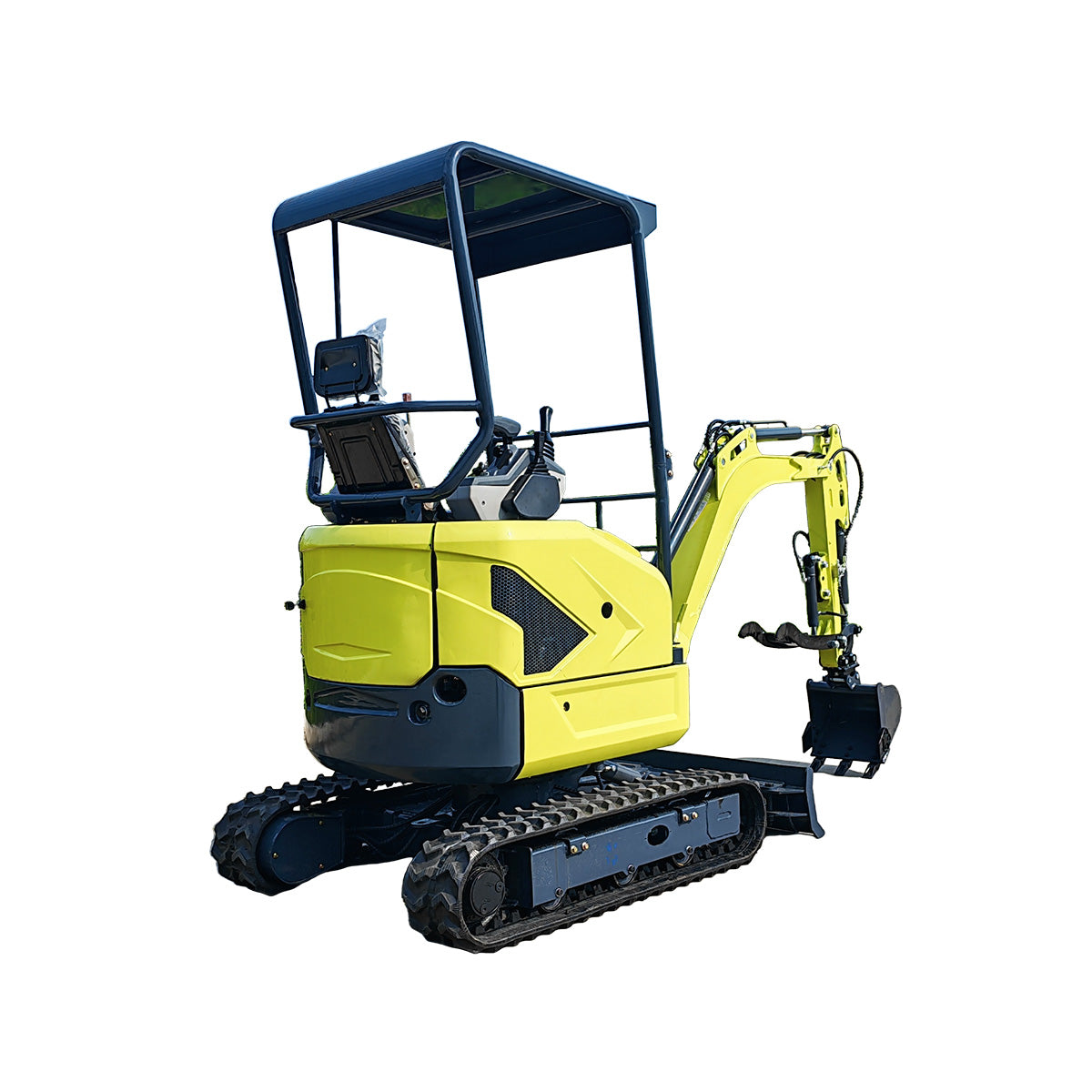

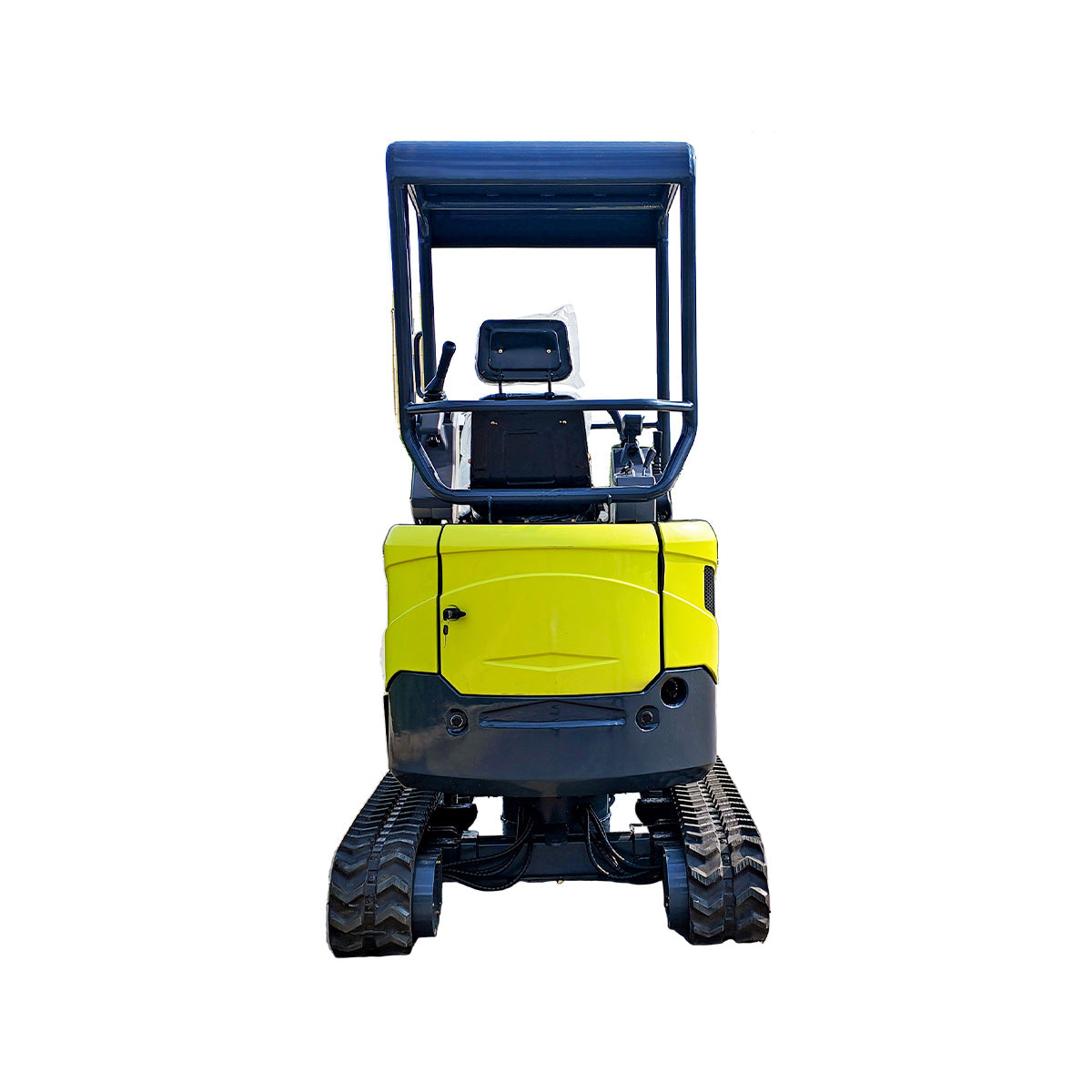

1.65 Ton GW16 Mini Excavator with Kubota Diesel D902 Engine
$13,172,993.00
Description
| Specification | Dimensions (mm) | ||
|---|---|---|---|

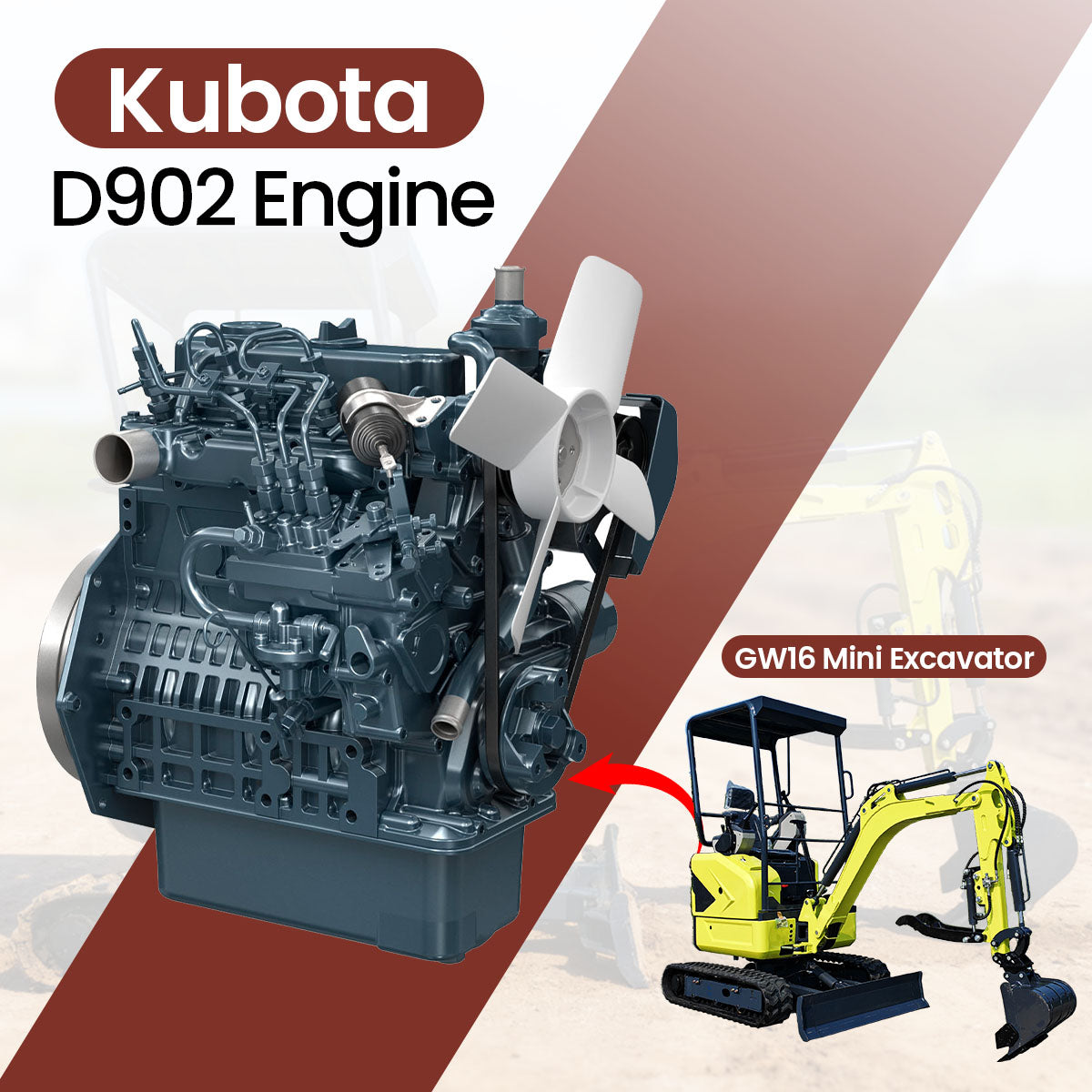

| Engine Model | KUBOTA D902 | Overall length | 3350 |
| Type | Three-cylinder direct injection | Ground length (transportation) | 1510 |
| Displacement (L) | 0.898 | Overall height (to top of boom) | 1290 |
| Rated Power (kw/rpm) | 11.8/2300 | Overall width | 1020/1270 |
| Type | Gear Pump Variable Piston Pump | Overall height (to top of cab) | 3330 |
| Rated working flow (L/min) | 27.6/41.4 | Counterweight ground clearance | 420 |
| Arm digging force(kN) | 9.5 | Minimum ground clearance | 150 |
| Bucket digging force(kN) | 16 | Tail swing radius | 650 |
| Travel speed (km/h) | 2.2-4.3 | Wheelbase | 1180 |
| Traction force (kN) | 18 | Standard track shoe width | 230 |
| Gradability ° | 30 | Bucket width | 430 |
| Max. rotation speed (r/min) | 9.5 | RS Boom right swing | 49.7° |
| Brake type | Mechanical brake | LS Boom left swing | 62.7° |
| Machine weight (kg) | 1500 | ① Max. digging height | 2900 |
| Bucket capacity (m³) | 0.04 | ②Max. dumping height | 1950 |
| Fuel tank capacity (L) | 19 | ③Max. digging depth | 2200 |
| Cooling system (L) | 5 | ④Max. digging radius on ground | 3650 |
| Engine oil volume (L) | 3.7 | ⑤Min. swing radius of working device | 1600 |
| Hydraulic oil tank capacity (L) | 20 | ⑥Max. lifting height of bulldozer | 150 |
| ⑦Max. cutting depth of bulldozer | 220 | ||
